美标截止阀

API GLOBE VALVE

采用标准Standards

设计制造 Design and Manufacture: BS1873 or ASME B 16.34

检验与试验 Inspection and Test: API 598

法兰连接尺寸 End flange dimension: ASME B16.5

对焊端 BW end dimension: ASME B16.25

承插焊端 Socket-weld dimension: ASME B16.11

结构长度 Face to face and end to end: ASME B16.10

高压等级 Pressure-temperature ratings: ASME B16.34

主要零件名称及材料Parts and Material List

Parts No.	Parts Name	Materials
Parts No.	Parts Name	WCBfTrim 1	WCB/Trim 5	WCB/Trim 8	CF8/304	CF8M/316
1	阀体Body	ASTM A216WCB	ASTM A216WCB	ASTM A216WCB	ASTM A351 CF8	ASTM A351 CF8M
2	阀座 Seat ring	A105 + 13Cr	A105 + STL	A105 + STL	ASTM A351 CF8	ASTM A351 CF8M
3	阀瓣Disc	ASTM A216WCB + 1Xr	ASTM A216WCB +STL	ASTM A216WCB + 1Xr	ASTM A351 CF8	ASTM A351 CF8M
4	阀杆Stem	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F304	ASTM A182F316
5	阀瓣盖Disc nut	ASTM A216WCB	ASTM A216WCB	ASTM A216WCB	ASTM A351 CF8	ASTM A351 CF8M
6	阀盖螺母Bonnet nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8M
7	阀盖螺柱Bonnet bolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B7	ASTM A193 B8	ASTM A193B8M
8	垫片Gasket	304 sheet + Graphite	304 sheet + Graphite	304 sheet + Graphite	304 + Graphite	316 +Graphite
9	上密封座 Backseat bushing	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A351 CF8	ASTM A351 CF8M
10	阀盖Bonnet	ASTM A216WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
11	填料 Packing	Graphite	Graphite	Graphite	Graphite	Graphite
12	圆柱销 Eyebolt pin	ASTM A36	ASTM A36	ASTM A36	304ss	316ss
13	螺钉 Gland eyebolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B7	ASTM A193 B8	ASTM A193B8M
14	填料压套Gland	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F304	ASTM A182F316
15	填料压板Gland flange	ASTM A216WCB	ASTM A216WCB	ASTM A216WCB	ASTM A351 CF8	ASTM A351 CF8M
16	吊环螺母Eyebolt nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8M
17	阀杆螺母Stem nut	ASTM A439 D2	ASTM A439 D2	ASTM A439 D2	ASTM A439 D2	ASTM A439 D2
18	手轮 Hand wheel	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron
19	手轮螺母Hand wheel nut	Carbon steel	Carbon steel	Carbon steel	Carbon steel	Carbon steel

Note: The chart above only lists out some common composition of steel globe valve parts. We may provide other different parts material composition according to the customer's request or the actual valve working condition.

主要外形尺寸及重量 Main Size of Outside & Weight

磅级 Class	口径Size		尺寸 Dimensions(mm)								重量 Weight(kg)
	NPS	DN	L			d	H	H1	W	W1	手轮 Hand wheel	传动装置 Gear box
	NPS	DN	RF	J T R	BW	d	H	H1	W	W1	手轮 Hand wheel	传动装置 Gear box
150	1/2	15	108	9 1 1	108	3 1	182	-	100	-	3
	3/4	20	117	0 3 1	117	9 1	193	-	100	-	4
	1	25	1 2 7	0 4 1	127	5 2	217	-	100	-	5
	11/4	32	140	152	140	2 3	235	-	135	-	8
	11/2	40	165	178	165	8 3	258	-	135	-	9
	2	50	203	216	203	51	330	-	200	-	9
	21/2	65	216	229	216	64	360	-	250	-	27
	3	80	241	254	241	76	390	-	280	-	36
	4	100	292	305	292	102	445	-	300	-	53
	5	125	356	369	356	127	480	-	350	-	75
	6	150	406	419	406	152	520	556	350	310	94	126
	8	200	495	508	495	203	600	658	400	310	148	180
	10	250	622	635	622	254	773	805	450	460	242	291
	12	300	698	711	698	305	880	955	500	460	438	480

主要外形尺寸及重量 Main Size of Outside & Weight

磅级 Class	口径Size		尺寸 Dimensions(mm)								重量 Weight(kg)
	NPS	DN	L			d	H	H1	W	W1	手轮 Hand wheel	传动装置 Gear box
	NPS	DN	RF	J T R	BW	d	H	H1	W	W1	手轮 Hand wheel	传动装置 Gear box
300	1/2	15	152	4 6 1	152	3 1	185	-	100	-	5	-
	3/4	20	178	1 9 1	178	9 1	195	-	100	-	7	-
	1	25	203	216	203	5 2	220	-	135	-	0 1	-
	11/4	32	216	229	216	2 3	240	-	135	-	4 1	-
	11/2	40	229	241	229	8 3	260	-	160	-	19	-
	2	50	267	283	267	51	385	-	200	-	25	-
	21/2	65	292	308	292	64	420	-	200	-	42	-
	3	80	318	333	318	76	440	-	280	-	46	-
	4	100	356	371	356	102	515	-	350	-	74	-
	5	125	400	416	400	127	580	-	350	-	1 1 1	-
	6	150	444	460	444	152	660	690	400	310	5 6	195
	8	200	559	575	559	203	900	950	550	460	275	327
	10	250	622	638	622	254	950	990	600	460	400	452
	12	300	711	727	711	305	1030	1080	700	460	624	725

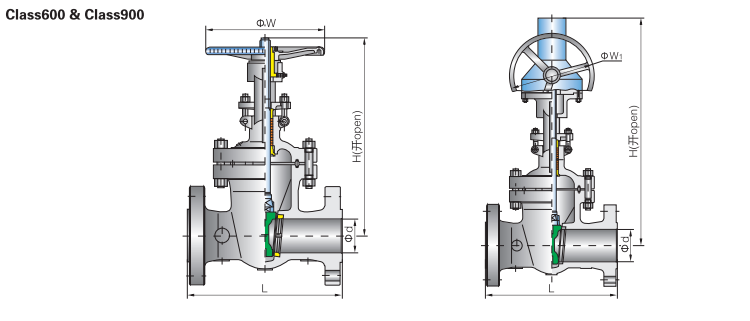

磅级 Class	口径Size		尺寸 Dimensions(mm)								重量 Weight(kg)
	NPS	DN	L			d	H	H1	w	W1	手轮 Hand wheel	传动装置 Gear box
	NPS	DN	RF	J T R	BW	d	H	H1	w	W1	手轮 Hand wheel	传动装置 Gear box
600	2	50	292	5 9 2	292	51	360	-	250	-	32	-
	21/2	65	330	333	330	64	410	-	280	-	42	-
	3	80	356	359	356	76	465	-	300	-	63	-
	4	100	432	435	432	102	545	575	400	310	107	138
	5	125	508	511	508	127	625	660	500	310	185	215
	6	150	559	562	559	152	785	820	550	460	290	342
	8	200	660	664	660	200	930	960	650	460	540	645
900	2	50	368	371	368	47	480	-	350	-	55	-
	21/2	65	419	422	419	57	520	-	350	-	68	-
	3	80	381	384	381	73	564	630	400	310	95	128
	4	100	457	460	457	98	685	720	450	310	160	210
	5	125	559	562	559	121	780	840	550	460	270	325
	6	150	610	613	610	146	950	1015	650	460	410	480
